GuideKit: Beautiful coach marks for Compose Multiplatform

See it in motion

Guidance that feels part of your app.

GuideKit renders above your existing Compose UI. Your screens stay intact while targets, arrows, and instruction cards work together.

01

Direct attention without interrupting the experience.

Highlight a card, a button, an avatar, or any measured composable. GuideKit handles the overlay while your app keeps control of content and completion.

Rounded targets Curved arrows Auto-scroll

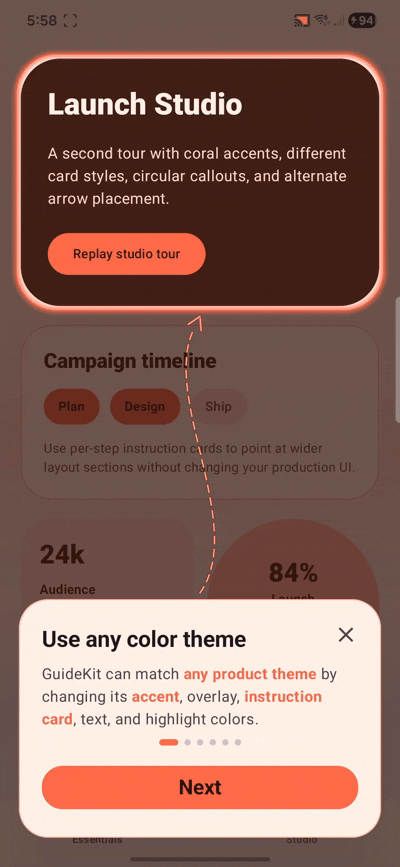

GuideKit Studio tour with coral styling and alternate arrow designs

GuideKit Essentials tour with coach marks and automatic scrolling

Real sample flows

One API, distinct product experiences.

GuideKit keeps each target, instruction card, arrow, and theme consistent with the Compose screen underneath it.

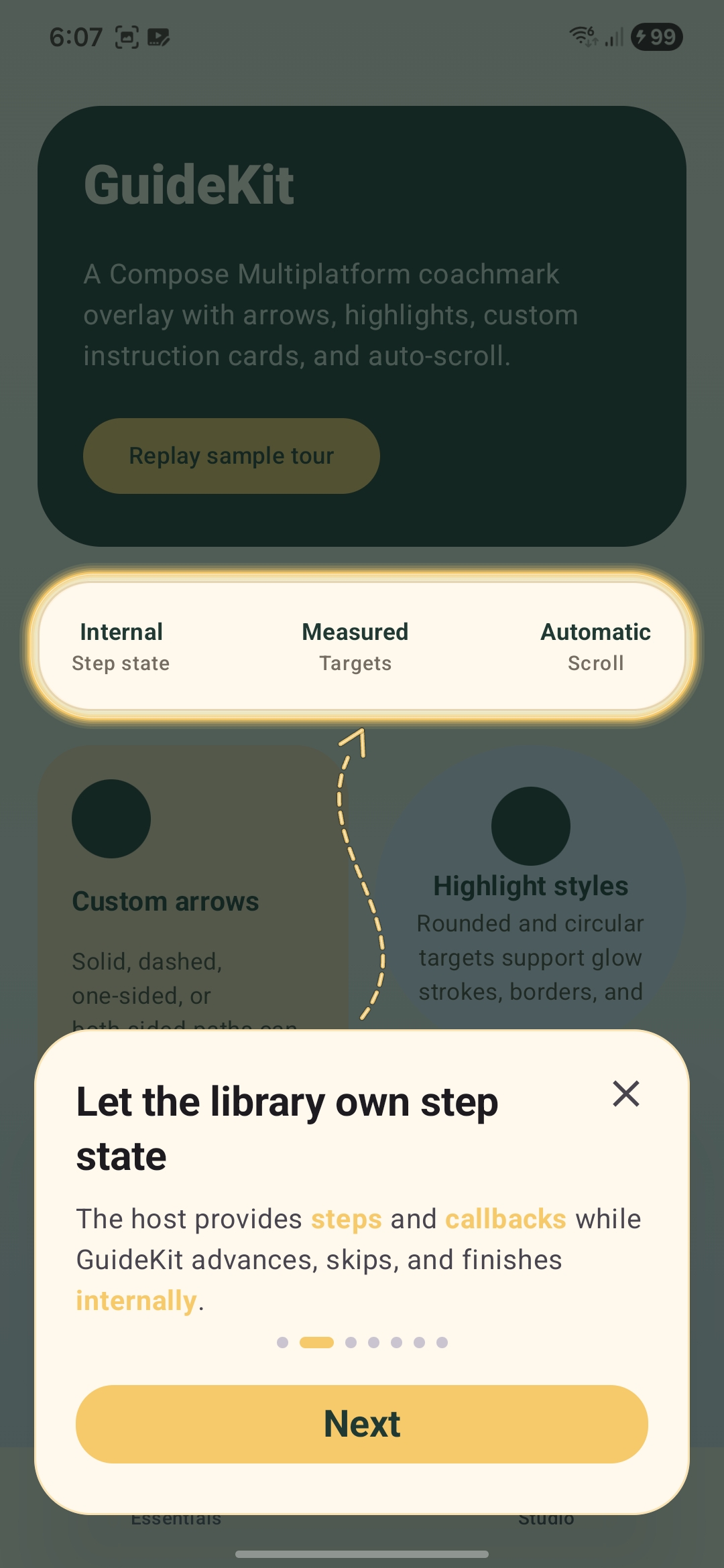

GuideKit highlighting the measured status strip with a dashed arrow — **Measured targets**Highlight real composables and explain step ownership.

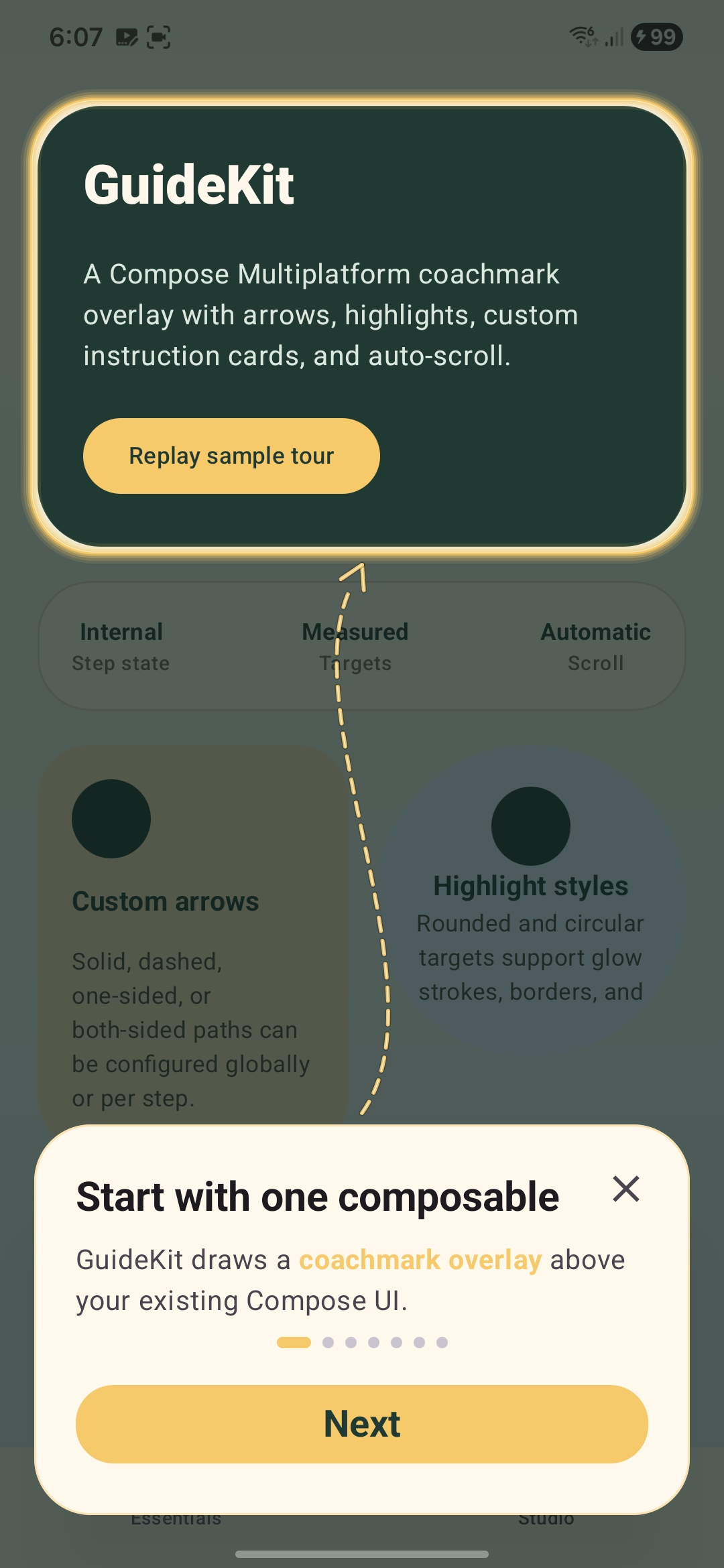

GuideKit highlighting the main sample card with a coach mark — **Polished defaults**Layered glow, cutout, arrow, progress, and instruction card.

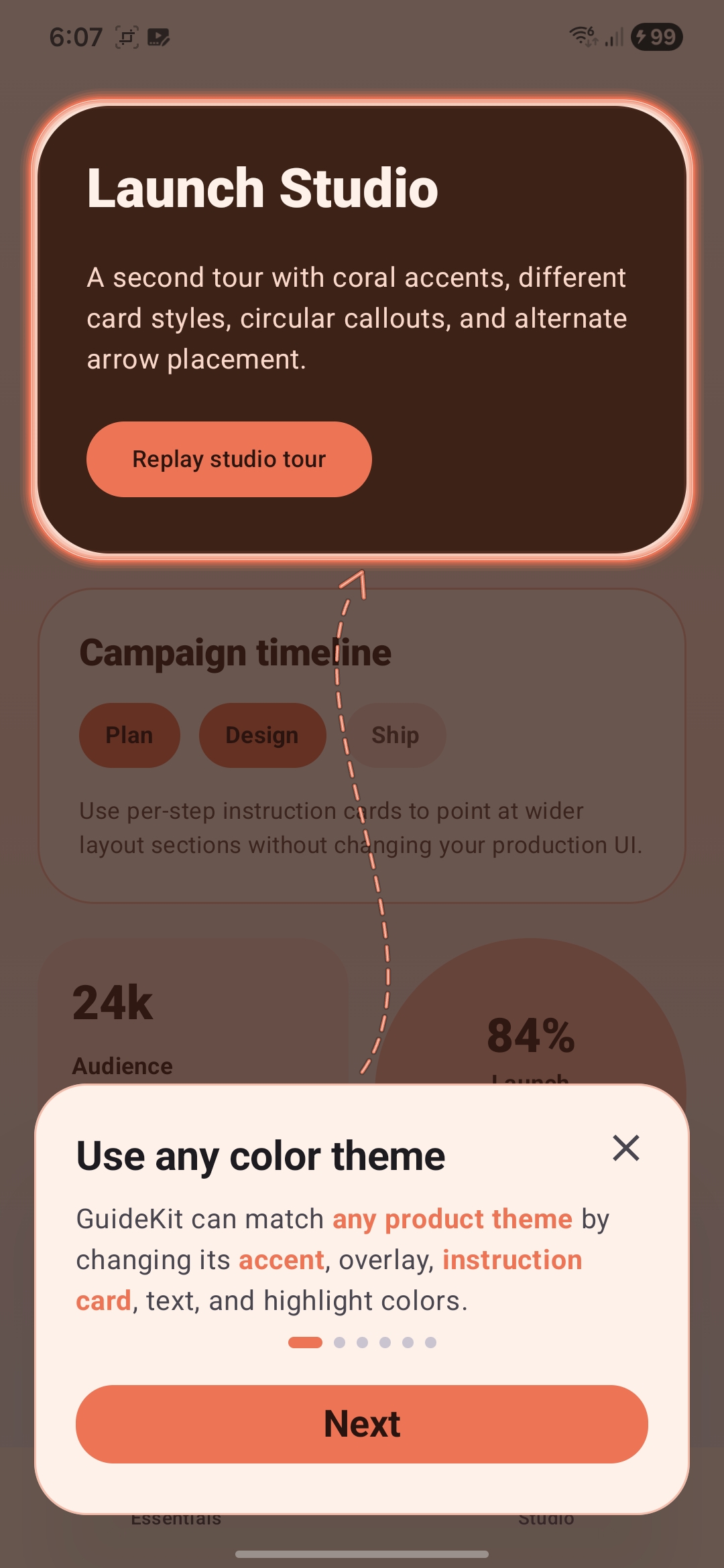

GuideKit Studio screen using a coral color theme — **Any color theme**Apply a visual system globally and refine individual steps.

Installation

Add one dependency to shared Compose UI.

GuideKit is published on Maven Central. Add it to the source set that renders your tours.

Compose Multiplatform · commonMain

kotlin {
    sourceSets {
        commonMain.dependencies {
            implementation("io.github.tharukack:guidekit:1.1.0")
        }
    }
}

Compose module

implementation("io.github.tharukack:guidekit:1.1.0")

Quick start

Your first guide in three clear steps.

GuideKit belongs beside the content in the main composable that occupies the full screen. A Scaffold is optional and does not change the setup.

01

Keep state in the parent screen

Own each target's measured bounds at the full-screen level. This example uses saveable visibility; use DataStore, a database, or any persistence you prefer to stop completed guides appearing again.

var targetBounds by remember { mutableStateOf<Rect?>(null) }
var showGuide by rememberSaveable { mutableStateOf(true) }

02

Measure the real target

Pass a bounds callback into the nested composable. Attach onGloballyPositioned to the exact component being highlighted, then send its boundsInRoot() value back to the parent.

@Composable
fun MainScreenContent(
    onTargetBoundsChanged: (Rect?) -> Unit,
) {
    Button(
        onClick = { /* action */ },
        modifier = Modifier.onGloballyPositioned { coordinates ->
            onTargetBoundsChanged(coordinates.boundsInRoot())
        },
    ) { Text("Create item") }
}

03

Render GuideKit after the content

Pass the callback into the child and render GuideKit after the screen content in the same full-size parent. This ensures the overlay draws above the entire screen.

@Composable
fun MainScreen() {
    var targetBounds by remember { mutableStateOf<Rect?>(null) }
    var showGuide by rememberSaveable { mutableStateOf(true) }

    Box(Modifier.fillMaxSize()) {
        MainScreenContent(
            onTargetBoundsChanged = { targetBounds = it },
        )

        if (showGuide) {
            GuideKit(
                steps = listOf(
                    GuideKitStep(
                        targetBounds = targetBounds,
                        title = "Create your first item",
                        description = "Tap here to start a new workflow.",
                        arrowConfigOverride = GuideKitArrowConfigOverride(
                            from = GuideKitAnchor.TopRight,
                            to = GuideKitAnchor.BottomCenter,
                        ),
                    ),
                ),
                onSkipped = { showGuide = false },
                onFinished = { showGuide = false },
                modifier = Modifier.fillMaxSize(),
            )
        }
    }
}

Nested target? Keep it where it belongs. Send targetBounds from that component to the full-screen parent through a callback such as onTargetBoundsChanged.

Customization

Start global. Get precise per step.

Set a consistent tour style once, then override only the exact arrow, highlight, or instruction-card properties a step needs.

01

Add multiple steps

Add one GuideKitStep per target. The list order is the tour order; GuideKit handles next, previous, and finish navigation.

val guideSteps = listOf(
    GuideKitStep(
        targetBounds = createButtonBounds,
        title = "Create your first item",
        description = "Tap here to start a new workflow.",
        arrowConfigOverride = GuideKitArrowConfigOverride(
            from = GuideKitAnchor.TopRight,
            to = GuideKitAnchor.BottomCenter,
        ),
    ),
    GuideKitStep(
        targetBounds = activityCardBounds,
        title = "Track your progress",
        description = "Your latest activity appears here.",
        arrowConfigOverride = GuideKitArrowConfigOverride(
            from = GuideKitAnchor.BottomLeft,
            to = GuideKitAnchor.TopCenter,
        ),
    ),
    GuideKitStep(
        targetBounds = profileButtonBounds,
        title = "Make it yours",
        description = "Customize your experience here.",
        arrowConfigOverride = GuideKitArrowConfigOverride(
            from = GuideKitAnchor.TopRight,
            to = GuideKitAnchor.CenterLeft,
        ),
    ),
)

02

Global and step-specific styles

GuideKitStyle supplies tour-wide defaults. Step override objects change only their explicitly supplied properties, so unrelated global colors, shapes, strokes, padding, and shadows remain intact.

Global style

val style = GuideKitStyle(
    accentColor = Color(0xFF7C4DFF),
    overlayColor = Color.Black.copy(alpha = 0.72f),
    arrowConfig = GuideKitArrowConfig(
        lineStyle = GuideKitArrowLineStyle.SpacedDash,
    ),
    targetHighlight = GuideKitTargetHighlightStyle(
        shape = GuideKitTargetHighlightShape.RoundedRect,
    ),
)

Step override

GuideKitStep(
    targetBounds = avatarBounds,
    title = "Your profile",
    description = "Manage it here.",
    arrowConfigOverride = GuideKitArrowConfigOverride(
        lineStyle = GuideKitArrowLineStyle.Solid,
    ),
    targetHighlightOverride = GuideKitTargetHighlightStyleOverride(
        shape = GuideKitTargetHighlightShape.Circle,
    ),
)

Library defaults→Global GuideKitStyle→Explicit step overrides

Ordinary override properties default to null, which means inherit. When null is intentional, such as removing a global border, use borderOverride = GuideKitOverride.Value(null).

03

Step text

Highlight one or many exact phrases with a single API. If no button label is supplied, GuideKit uses Next and changes the final step to Got it.

GuideKitStep(
    targetBounds = activityBounds,
    title = "Never miss an update",
    description = "Important activity and urgent alerts appear here.",
    descriptionHighlights = listOf("Important activity", "urgent alerts"),
    primaryButtonText = "Continue",
)

04

Arrows

from is the connection point on the instruction card; to is the connection point on the highlighted target. Choose any of nine anchors, deterministic curves, layered strokes, arrowheads, and named line styles.

TopLeftTopCenterTopRightCenterLeftCenterCenterRightBottomLeftBottomCenterBottomRight

Solid

SpacedDash

Dotted

ShortDash

MediumDash

LongDash

DashDot

GuideKitArrowConfigOverride(
    from = GuideKitAnchor.TopRight,
    to = GuideKitAnchor.CenterLeft,
    curveSeed = 3,
    lineStyle = GuideKitArrowLineStyle.MediumDash,
    arrowHead = GuideKitArrowHead.BothSides,
    arrowHeadLength = 38,
    arrowHeadAngleDegrees = 30,
    strokes = listOf(
        GuideKitArrowStroke(width = 9, color = Color.Black.copy(alpha = 0.22f)),
        GuideKitArrowStroke(width = 5, color = Color(0xFF7C4DFF)),
    ),
)

05

Target highlights

Use a rounded rectangle for cards and controls or a circle for avatars, icons, and floating action buttons. Customize cutout, integer padding and stroke widths, corner radius, layered glow, and borders.

Weekly progress12 tasks completed +18%

RoundedRect

MC Maya Chen Product designer

Circle

GuideKitTargetHighlightStyleOverride(
    shape = GuideKitTargetHighlightShape.Circle,
    padding = 16,
    glowStrokes = listOf(
        GuideKitTargetHighlightStroke(width = 30, alpha = 0.14f),
        GuideKitTargetHighlightStroke(width = 8, alpha = 0.55f),
    ),
    borderWidth = 3,
)

06

Instruction cards

Control alignment, outer and inner padding, constraints, shape, colors, border, Material elevation, and the optional custom shadow globally or per step.

GuideKitInstructionBoxStyleOverride(
    alignment = Alignment.BottomCenter,
    outerPadding = PaddingValues(20.dp),
    contentPadding = PaddingValues(horizontal = 24.dp, vertical = 20.dp),
    fillMaxWidth = false,
    maxWidth = 420.dp,
    shape = RoundedCornerShape(28.dp),
    containerColor = Color(0xFF17132B),
    contentColor = Color.White,
    shadow = GuideKitInstructionBoxShadow(elevation = 32.dp),
)

07

Automatic scrolling

Auto-scroll is enabled per step by default. Supply onScrollBy so GuideKit can ask the host scroll state to keep the target visible and clear of the instruction card.

GuideKit(
    steps = guideSteps,
    onScrollBy = { deltaPx -> scrollState.animateScrollBy(deltaPx) },
    onFinished = { showGuide = false },
)

// Fixed target, such as a floating action button:
GuideKitAutoScrollConfig(enabled = false)

08

Navigation and callbacks

Choose the starting step, toggle progress, observe step changes, and persist skipped or completed tours. Swiping the card right returns to the previous step.

GuideKit(
    steps = guideSteps,
    initialStepIndex = 0,
    showStepIndicator = true,
    onStepChanged = { index -> analytics.track("guide_step_${index + 1}") },
    onSkipped = {
        showGuide = false
        onboardingStore.markGuideCompleted()
    },
    onFinished = {
        showGuide = false
        onboardingStore.markGuideCompleted()
    },
)

API reference

Every public option and its default.

A compact reference for the current 1.1.0 API. Open only the group you need.

GuideKitOverlay, navigation, and lifecycle9 options

Option	Default	Purpose
`steps`	Required	Ordered guide steps; an empty list renders nothing.
`modifier`	`Modifier`	Use `fillMaxSize()` at screen level.
`initialStepIndex`	`0`	Starting step; safely clamped.
`showStepIndicator`	`true`	Shows progress dots.
`style`	`GuideKitStyle()`	Global visual defaults.
`onStepChanged`	`{}`	Reports the zero-based active index.
`onScrollBy`	`{ 0f }`	Delegates scrolling to the host.
`onSkipped`	`null`	When provided, shows close and handles skip.
`onFinished`	Required	Runs after the final primary action.

GuideKitStepContent and per-step overrides10 options

Option	Default	Purpose
`targetBounds`	Required	Measured target bounds.
`title`	Required	Card title.
`description`	Required	Card body.
`primaryButtonText`	`null` → Next / Got it	Custom primary label.
`descriptionHighlights`	`emptyList()`	Exact phrases to emphasize.
`instructionBottomPadding`	`104.dp`	Default card bottom space.
`arrowConfigOverride`	`null` → inherit global	Overrides supplied arrow properties.
`targetHighlightOverride`	`null` → inherit global	Overrides supplied highlight properties.
`instructionBoxOverride`	`null` → inherit global	Overrides supplied card properties.
`autoScroll`	`GuideKitAutoScrollConfig()`	Step scroll behavior.

GuideKitArrowConfigOverridePartial per-step arrow changes12 options

Option	Default	Purpose
`enabled`, `from`, `to`	`null` → inherit	Visibility and connection anchors.
`curveSeed`, `minVisibleDistance`	`null` → inherit	Path variation and minimum distance.
`lineStyle`, `strokes`, `strokeCap`	`null` → inherit	Arrow body appearance.
`arrowHead`, `arrowHeadLength`, `arrowHeadAngleDegrees`, `arrowHeadStrokes`	`null` → inherit	Arrowhead placement and appearance.

GuideKitTargetHighlightStyleOverridePartial per-step highlight changes12 options

Option	Default	Purpose
`enabled`, `shape`, `cutoutEnabled`	`null` → inherit	Visibility, geometry, and cutout.
`padding`, `cornerRadius`, `glowStrokes`	`null` → inherit	Highlight sizing and glow.
`borderColor`, `borderWidth`	`null` → inherit	Main border changes.
`borderColorOverride`	`GuideKitOverride.Inherit`	Use `Value(null)` to restore accent resolution.
`innerBorderColor`, `innerBorderWidth`, `innerBorderInset`	`null` → inherit	Inner border changes.

GuideKitInstructionBoxStyleOverridePartial per-step card changes16 style properties

Option	Default	Purpose
`alignment`, `contentPadding`, `fillMaxWidth`, `shape`	`null` → inherit	Placement and layout.
`outerPadding`, `minWidth`, `maxWidth`, `minHeight`, `maxHeight`	`null` → inherit	Direct non-null spacing and constraints.
`containerColor`, `contentColor`, `border`, `shadow`	`null` → inherit	Direct non-null surface values.
`tonalElevation`, `shadowElevation`, `modifier`	`null` → inherit	Elevation and modifier changes.
`outerPaddingOverride`, size `...Override`, color `...Override`, `borderOverride`, `shadowOverride`	`GuideKitOverride.Inherit`	Explicitly set nullable values, including `Value(null)`.

GuideKitStyleGlobal visual defaults13 options

Option	Default
`accentColor`	`Color(0xFF5ED5B3)`
`overlayColor`	Black at `0.68f`
`titleColor`	`null` → theme onSurface
`descriptionColor`	`null` → theme onSurfaceVariant
`highlightedDescriptionColor`	`null` → accent
`stepIndicatorActiveColor`	`null` → accent
`stepIndicatorInactiveColor`	`null` → theme outlineVariant
`primaryButtonContainerColor`	`null` → accent
`primaryButtonContentColor`	`Color(0xFF062D25)`
`skipIconTint`	`null` → theme onSurfaceVariant
`arrowConfig`	`GuideKitArrowConfig()`
`targetHighlight`	`GuideKitTargetHighlightStyle()`
`instructionBox`	`GuideKitInstructionBoxStyle()`

GuideKitArrowConfigPath, strokes, and arrowhead13 options

Option	Default
`enabled`	`true`
`from`	`TopCenter`
`to`	`BottomCenter`
`curveSeed`	`0`
`minVisibleDistance`	`40.dp`
`lineStyle`	`SpacedDash`
`strokes`	Widths `9, 6, 2`
`strokeCap`	`StrokeCap.Round`
`arrowHead`	`TargetSide`
`arrowHeadLength`	`38`
`arrowHeadAngleDegrees`	`30`
`arrowHeadStrokes`	Widths `9, 6, 2`
`GuideKitArrowStroke.alpha`	`1f`

GuideKitTargetHighlightStyleCutout, shape, glow, and borders11 options

Option	Default
`enabled`	`true`
`shape`	`RoundedRect`
`cutoutEnabled`	`true`
`padding`	`10`
`cornerRadius`	`28.dp`
`glowStrokes`	Widths/alpha `30/.11, 22/.18, 14/.30, 8/.45`
`borderColor`	`null` → accent
`borderWidth`	`3`
`innerBorderColor`	White at `0.7f`
`innerBorderWidth`	`1`
`innerBorderInset`	`2`

GuideKitInstructionBoxStylePlacement, sizing, surface, and shadow16 options

Option	Default
`alignment`	`Alignment.BottomCenter`
`outerPadding`	`null` → 18.dp sides + step bottom
`contentPadding`	`22.dp` horizontal, `24.dp` vertical
`fillMaxWidth`	`true`
`minWidth`, `maxWidth`	`null`
`minHeight`, `maxHeight`	`null`
`shape`	`RoundedCornerShape(30.dp)`
`containerColor`	`null` → theme surface
`contentColor`	`null` → theme onSurface
`border`	1.dp accent at `0.28f`
`tonalElevation`	`0.dp`
`shadowElevation`	`26.dp`
`modifier`	`Modifier`
`shadow`	`GuideKitInstructionBoxShadow()`
`shadow.elevation`	`30.dp`
`shadow colors`	Black at `0.42f`

GuideKitAutoScrollConfigPer-step visibility spacing3 options

Option	Default	Purpose
`enabled`	`true`	Enables automatic scroll requests.
`minTopVisibleDistance`	`null` → arrow distance + 1.dp	Safe space above the target.
`spacing`	`null` → arrow distance + 1.dp	Space between target and card.

EnumsAll named choices4 groups

GuideKitAnchor

TopLeft, TopCenter, TopRight, CenterLeft, Center, CenterRight, BottomLeft, BottomCenter, BottomRight

GuideKitArrowLineStyle

Solid, SpacedDash, Dotted, ShortDash, MediumDash, LongDash, DashDot

GuideKitArrowHead

None, TargetSide, InstructionBoxSide, BothSides

GuideKitTargetHighlightShape

RoundedRect, Circle

Clear ownership

Your app owns intent.
GuideKit owns the tour.

No screen takeover or separate overlay architecture. Provide real target bounds and lifecycle callbacks; GuideKit handles the experience.

Explore the sample app

GuideKit owns

Step navigation
Highlight drawing
Arrow rendering
Instruction cards
Auto-scroll calculations

Your app owns

Step definitions
Target measurement
Visibility state
Persistence
Analytics callbacks

Platform support

One shared API. Native-feeling guidance.

Android and iOS are supported today. Desktop and web are on the roadmap.

AndroidSupported

✓

iOSSupported

✓

DesktopPlanned

→

WebPlanned

→

Ready when your users are

Make every first experience
feel obvious.

Add your first coach mark in minutes, then shape every detail when you need to.

Start building View on GitHub

Guide users.Highlight what matters.

Guidance that feels part of your app.

Direct attention without interrupting the experience.

One API, distinct product experiences.

Add one dependency to shared Compose UI.

Your first guide in three clear steps.

Keep state in the parent screen

Measure the real target

Render GuideKit after the content

Start global. Get precise per step.

Add multiple steps

Global and step-specific styles

Step text

Arrows

Target highlights

Instruction cards

Automatic scrolling

Navigation and callbacks

Every public option and its default.

Your app owns intent.GuideKit owns the tour.

One shared API. Native-feeling guidance.

Make every first experiencefeel obvious.

Guide users.
Highlight what matters.

Your app owns intent.
GuideKit owns the tour.

Make every first experience
feel obvious.
